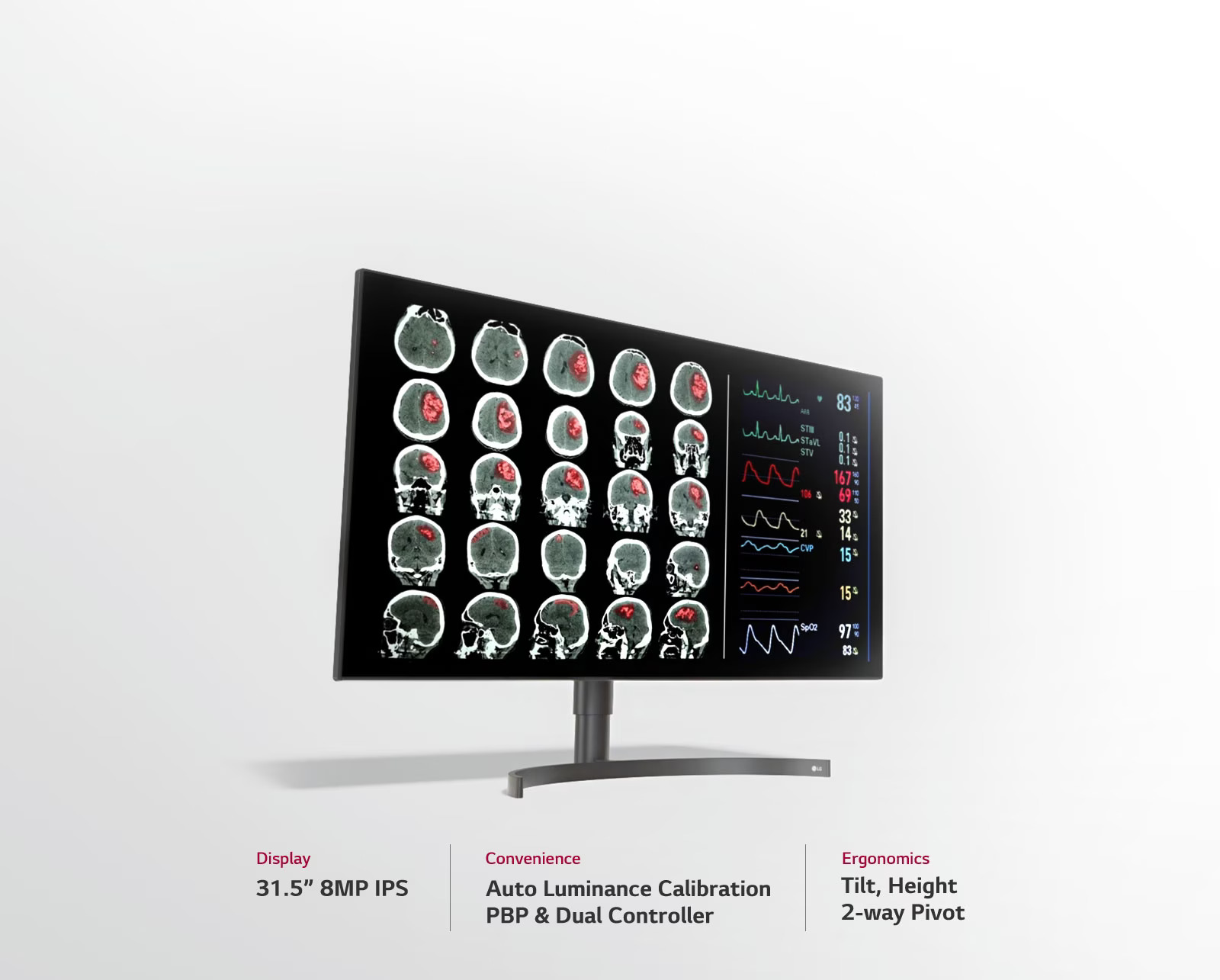

32HL512D
LG 8MP Diagnostic Monitor
-
31.5-inch 8MP IPS Display
-
450cd/m², DCI-P3 98% (CIE1976)
-
Multi-resolution Mode (8/6/4MP)
-
Pathology Mode
-
4-Side Virtually Borderless Design
Optimized Image Quality for
Diagnostic Review

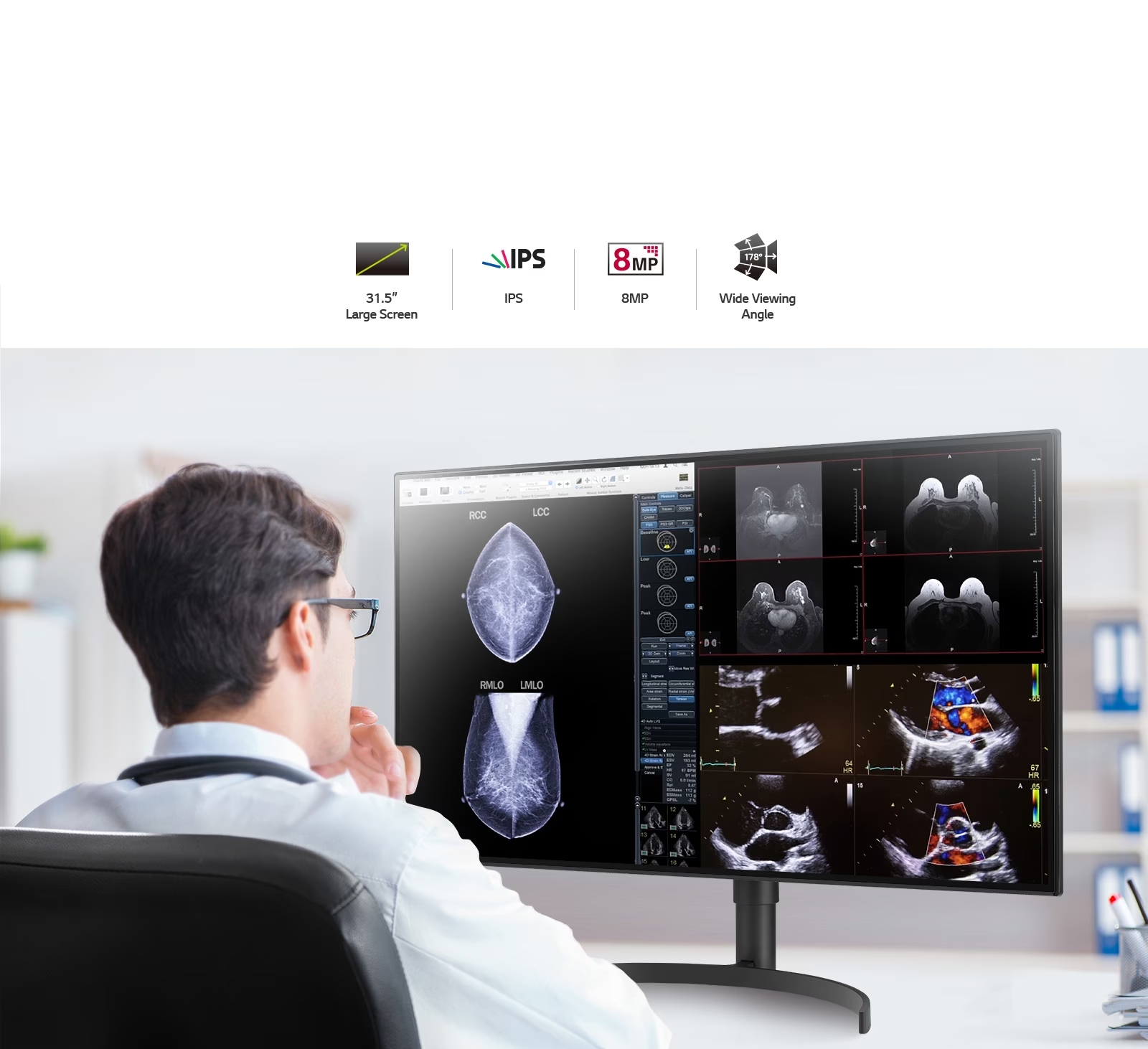

31.5″ 8MP IPS Display
Accurate Image from Any Angle
DISPLAY
-
- Aspect Ratio
- 16:9
- Brightness (Typ.)
- 450cd/m²
-
- Colour Bit
- 10bit (8bit+FRC)
- Colour Gamut (Typ.)
- DCI-P3 98% (CIE1976)
-
- Contrast Ratio (Typ.)
- 1300:1
- Panel Type
- IPS
-
- Resolution
- 3840 x 2160
- Response Time (GTG)
- 14ms (Off-setting), 5ms (Faster-setting)
-
- Size (Inch)
- 31.5
- Surface Treatment
- Anti-Glare, 3H
-
- Viewing Angle (CR≥10)
- 178° (Right/Left), 178° (Up/Down)
FEATURE
-
- Brightness stabilization
- Yes
- Black Stabilizer
- Yes
-
- HW Calibration
- Yes (PerfectLum)
- DICOM Compliant
- Yes
-
- Colour Temperature
- 6500K/7500K/9300K Manual (5000K ~ 10000K)
- Flicker Safe
- Yes
-
- HDR 10
- Yes
- HDR Effect
- Yes
-
- PBP
- Yes (2PBP)
- Multi-resolution Mode
- Yes (8MP/6MP/4MP)
-
- Pathology Mode
- Yes
- Reader Mode
- Yes
-
- Light Box Mode
- Yes
- Smart Energy Saving
- Yes
-
- Super Resolution+
- Yes
SW APPLICATION
-
- Dual Controller
- Yes
- Qubyx
- Yes
CONNECTIVITY
-
- DisplayPort
- Yes (2ea)
- HDMI
- Yes (1ea)
-
- USB Downstream Port
- Yes (2ea/ver2.0)
- USB Upstream Port
- Yes (1ea/ver2.0)
POWER
-
- AC Input
- 100-240Vac, 50/60Hz
- DC Output
- 19V, 3.42A
-
- Power Consumption (DC Off)
- Less than 0.3W
- Power Consumption (Max.)
- 65W
-
- Type
- External Power (Adapter)
MECHANICAL
-
- Borderless Design
- 4-Side Virtually Borderless Design
- Display Position Adjustments
- Tilt/Height/Pivot
-
- Down Height
- 85.3mm
- Height Range
- 110mm
-
- OneClick Stand
- Yes
- Pivot
- Yes (±90°)
-
- Tilt
- Yes (-5°~20˚)
- Wall Mount Size
- 100 x 100 mm
DIMENSIONS/WEIGHT
-
- Dimension in Shiping (W x H x D)
- 838 x 553 x 240 mm
- Dimension with Stand (W x H x D)
- 718.2 x 590.0 x 231.2 mm
-
- Dimension without Stand (W x H x D)
- 718.2 x 414.3 x 45.1 mm
- Pallet Stuffing (20ft/40ft/40ft HC)
- 144EA/336EA/560EA
-
- Weight in Shipping
- 11.4kg (25.1lb)
- Weight with Stand
- 7.3kg (16.1lb)
-
- Weight without Stand
- 5.9kg (13lb)
STANDARD
-
- IEC (IEC 60601-1/IEC 60601-1-2)
- Yes
- EN (EN 60601-1/EN 60601-1-2)
- Yes
-
- IEC (IEC 60950-1/IEC 55032, 55024)
- Yes
- EN (EN 60950-1/EN 55032, 55024)
- Yes
-
- cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
- Yes
- FCC (FCC part 15 Class A)
- Yes
-
- FDA
- 510 (k) (Class II)
- ISO13485
- Yes
-
- GMP
- Yes
- KGMP
- Yes
-
- RoHS
- Yes
- REACH
- Yes
-
- WEEE
- Yes
- MFDS
- Yes
ACCESSORY
-
- Calibration Report (Paper)
- Yes
- Power Cord
- Yes
